1500mm x6000mm Gantry Fiber Laser Cutting Machine for Metal

Product Details

Place of Origin: China

Brand Name: RayLaser

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Wooden

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: Sets/M

Get Best Price

Product Details

Product Description

Highlight:

Application:	LASER CUTTING	Applicable Material:	Metal
Condition:	New	Laser Type:	Fiber Laser
Cutting Area:	1500mm*3000mm	Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cutting Thickness:	0~30mm
CNC Or Not:	Yes	Cooling Mode:	WATER COOLING
Control Software:	CYPCUT	Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools	Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN	Control System Brand:	Cypcut
Weight (KG):	3500 KG	Key Selling Points:	High Productivity Low Maintenance
Optical Lens Brand:	Wavelength	Warranty:	3 Years
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Fabricating, Bicycle	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	3 Years
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC, Quality Brighter Laser, Experienced Assembling Technique	Mode Of Operation:	Continuous Wave
Configuration:	Gantry Type	Products Handled:	Sheet Metal
Feature:	Programmable Servo Motor	Performance:	High Performance
Speed:	Quick Fast	Precision:	Accuracy
Maintenance:	Low Cost	Expericed Assembling Technique:	Reliable Quality
Experienced After Sales Service:	Solution And Training Offered

Application:	LASER CUTTING
Applicable Material:	Metal
Condition:	New
Laser Type:	Fiber Laser
Cutting Area:	1500mm*3000mm
Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	0~30mm
CNC Or Not:	Yes
Cooling Mode:	WATER COOLING
Control Software:	CYPCUT
Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools
Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN
Control System Brand:	Cypcut
Weight (KG):	3500 KG
Key Selling Points:	High Productivity Low Maintenance
Optical Lens Brand:	Wavelength
Warranty:	3 Years
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Fabricating, Bicycle
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	3 Years
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC, Quality Brighter Laser, Experienced Assembling Technique
Mode Of Operation:	Continuous Wave
Configuration:	Gantry Type
Products Handled:	Sheet Metal
Feature:	Programmable Servo Motor
Performance:	High Performance
Speed:	Quick Fast
Precision:	Accuracy
Maintenance:	Low Cost
Expericed Assembling Technique:	Reliable Quality
Experienced After Sales Service:	Solution And Training Offered

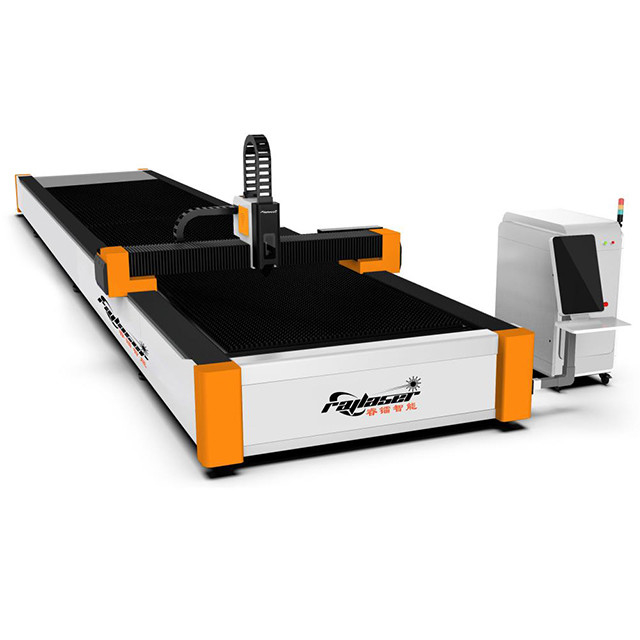

1500mm x6000mm Gantry Fiber Laser Cutting Machine for Metal

Unlock Unmatched Precision with Our Ultra-Wide Format Gantry Laser Cutting Machine

Designed for heavy-duty industrial applications, our Ultra-Wide Format Gantry Fiber Laser Cutting Machine delivers exceptional precision, power, and versatility for large-scale metal fabrication. With a massive customizable cutting area of up to 15,000mm x 3,000mm, this machine is engineered to meet the high standards of industries across the European Union, United States, Chile, and other global markets. Whether you're processing structural beams, thick plates, or oversized metal sheets, this system offers unparalleled performance and reliability.

1500mm x6000mm Gantry Fiber Laser Cutting Machine for Metal 0

Key Features & Advantages:

Ultra-Wide Cutting Area: Tailor the machine to your workshop layout and production needs with a customizable bed size, ideal for processing large plates and structural components common in shipbuilding, aerospace, and construction.
High-Power Laser Options (6KW–50KW): Capable of bevel cutting and piercing thick materials with ease, reducing the need for secondary processing and saving time and costs.
Dual Gantry System: Double your productivity with an optional dual-gantry design, allowing simultaneous processing of two sheets for industrial-scale output.
Independent Cutting Table: Minimizes thermal distortion and ensures long-term structural integrity and cutting accuracy, even under continuous operation.
High-Speed Operation: Achieve cutting speeds of up to 180m/min with accelerations ranging from 1.5G to 4G, maximizing throughput without sacrificing precision.
Extreme Accuracy: With positioning and repeat accuracy within ≤0.03mm, this machine meets the strict tolerances required for high-end applications in defense, energy, and transportation.

Technical Specifications:

Parameter	Specification
Cutting Area	Customizable (Up to 15,000mm x 3,000mm)
Laser Source	IPG / Raycus / Max / BWT / Boci
Laser Power	6KW – 50KW
Max Acceleration	1.5G – 4G
Cutting Speed	80m/min – 180m/min
Positioning Accuracy	≤0.03mm
Repositioning Accuracy	≤0.03mm

Why Choose Our Ultra-Wide Laser Cutter?

Built to international industrial standards, our gantry laser cutter combines robust construction with smart automation features. It supports complex bevel cutting for welding preparation and is ideal for pipelines, ship hulls, and structural frameworks. With a global supply chain and top-tier components, we guarantee durability, precision, and seamlessintegration into your production line.

FAQs:

Q: What makes this machine suitable for ultra-wide format cutting?
A: Its reinforced gantry structure and independent table design provide stability and accuracy across huge cutting areas, making it perfect for oversized metal sheets.

Q: Can it perform bevel cutting on thick materials?
A: Absolutely. With laser power up to 50KW, it easily handles bevel cutting on thick plates, eliminating manual grinding and improving weld quality.

Q: Is operator training available?
A: Yes. We provide comprehensive training, video tutorials, and 24/7 online support to ensure you maximize machine performance.

Q: Can we inspect the machine before shipment?
A: We offer live videos, sample cutting tests, and virtual factory tours for complete transparency.

Q: What after-sales services do you offer?
A: We supply original spare parts, remote diagnostics, and on-site technical support if required.

Upgrade your manufacturing capabilities with our high-speed, ultra-wide format laser cutting solution—perfect for achieving new levels of efficiency and precision in heavy industrial sectors.
