CNC Gantry Fiber Laser Cutting Machine 1500x3000mm for Metal
Product Details
Place of Origin: China
Brand Name: RayLaser
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden
Delivery Time: 7-30days
Payment Terms: T/T
Supply Ability: Sets/M
Get Best Price
Highlight:
Gantry Laser Cutting Machine 6kw
,Gantry Laser Cutting Machine 15kw
,Cnc Laser Cutting Machine 30kw
Application: |
LASER CUTTING |
Applicable Material: |
Metal |
Condition: |
New |
Laser Type: |
Fiber Laser |
Cutting Area: |
1500mm*3000mm |
Cutting Speed: |
0~100m/min |
Graphic Format Supported: |
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
Cutting Thickness: |
0~30mm |
CNC Or Not: |
Yes |
Cooling Mode: |
WATER COOLING |
Control Software: |
CYPCUT |
Laser Source Brand: |
MAX Raycus |
Laser Head Brand: |
Raytools |
Servo Motor Brand: |
Yaskawa |
Guiderail Brand: |
HIWIN |
Control System Brand: |
Cypcut |
Weight (KG): |
3500 KG |
Key Selling Points: |
High Productivity Low Maintenance |
Optical Lens Brand: |
Wavelength |
Warranty: |
3 Years |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
3 Years |
Core Components: |
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC |
Mode Of Operation: |
Continuous Wave |
Configuration: |
Gantry Type |
Products Handled: |
Sheet Metal |
Feature: |
Programmable Servo Motor |
Performance: |
High Performance |
Speed: |
Quick Fast |
Precision: |
Accuracy |
Maintenance: |
Low Cost |
Application: |
LASER CUTTING |
Applicable Material: |
Metal |
Condition: |
New |
Laser Type: |
Fiber Laser |
Cutting Area: |
1500mm*3000mm |
Cutting Speed: |
0~100m/min |
Graphic Format Supported: |
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
Cutting Thickness: |
0~30mm |
CNC Or Not: |
Yes |
Cooling Mode: |
WATER COOLING |
Control Software: |
CYPCUT |
Laser Source Brand: |
MAX Raycus |
Laser Head Brand: |
Raytools |
Servo Motor Brand: |
Yaskawa |
Guiderail Brand: |
HIWIN |
Control System Brand: |
Cypcut |
Weight (KG): |
3500 KG |
Key Selling Points: |
High Productivity Low Maintenance |
Optical Lens Brand: |
Wavelength |
Warranty: |
3 Years |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
3 Years |
Core Components: |
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC |
Mode Of Operation: |
Continuous Wave |
Configuration: |
Gantry Type |
Products Handled: |
Sheet Metal |
Feature: |
Programmable Servo Motor |
Performance: |
High Performance |
Speed: |
Quick Fast |
Precision: |
Accuracy |
Maintenance: |
Low Cost |

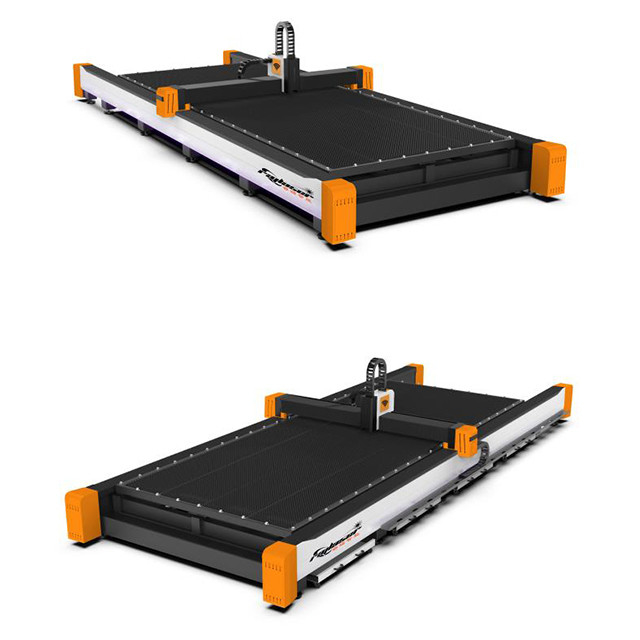

CNC Gantry Fiber Laser Cutting Machine 1500x3000mm for Metal
CNC Gantry Fiber Laser Cutting Machine
High-precision stainless steel and metal cutting machine with industrial-grade performance for demanding fabrication projects.
Key Specifications
Laser Type:
Fiber Laser
Cutting Area:
1500mm × 3000mm (customizable)
Max Cutting Speed:
120m/min
Cutting Thickness:
0-30mm
Position Accuracy:
±0.03mm
Laser Power Options:
1000W-20000W
Control System:
CypCut FSCUT
Warranty:
3 years
Premium Features
- Whole welded structural frame with annealing and abrasive blasting for zero deformation
- Top-tier mechanical moving system ensures lifelong precision
- Professional-grade laser source supports 24/7 continuous operation
- User-friendly software with auto-focus cutting head for all skill levels
- Industrial touch HMI screen for intuitive operation
- International standard electrical components for durability
- Active auto-lubrication system for mechanical moving precision
Technical Parameters
| Material | Thickness (mm) | Assist Air | Speed (m/min) | Power (W) | Pressure (bar) | Header Height (mm) | Focus Height | Nozzle Type |
|---|---|---|---|---|---|---|---|---|
| MS (Q235B) | 1 | N2/Air | 58~62 | 6000 | 12~16 | 0.5 | 0 | Single:2.0 |
| 2 | N2/Air | 31~36 | 6000 | 12~16 | 0.5 | 0~-0.5 | Single:2.0 | |
| 3 | N2/Air | 18~22 | 6000 | 12~16 | 0.5 | -1~-1.5 | Single:2.0 | |
| 4 | N2/Air | 11~13 | 6000 | 12~16 | 0.5 | -2~-2.5 | Single:2.5 | |
| 5 | N2/Air | 8~10 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 | |
| 6 | N2/Air | 5.5~6.5 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 | |
| 8 | O2 | 2.5~2.6 | 4500~5000 | 0.6~0.8 | 0.6~0.8 | 5.5~6.5 | Dural:1.2 | |
| 10 | O2 | 2.2~2.3 | 6000 | 0.6~0.8 | 0.6~0.8 | 5.5~6.5 | Dural:1.2 |
Sample Work
Packaging & Shipping
Our Services
- Professional pre-sale consulting and customized solutions
- High-quality production with detailed inspection processes
- Comprehensive training adapted to user requirements
- Affordable consumable parts and upgrade options
- Lifetime technical support and guidance
- Quick response to all inquiries and concerns
Frequently Asked Questions
How do I choose the right machine for my needs?
Simply inform us about your application requirements, and we'll provide the perfect solution tailored to your specific needs.
What support is available for machine operation?
We provide video tutorials and English manuals with the machine, plus professional guidance via video instruction if needed.
What is covered under warranty?
We offer free parts replacement during the 3-year warranty period, with affordable after-sales service available afterward.
