High Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration

High Productivity Tube Cutting Machine with Raytools Laser Cutting Head

Product Overview

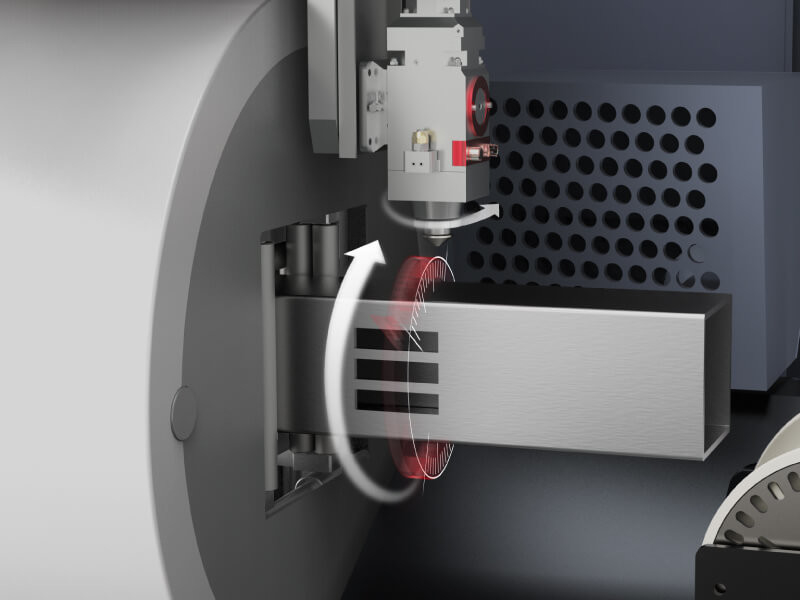

Our high-productivity CNC tube laser cutting machine integrates advanced technology to deliver exceptional performance in metal fabrication. Designed for industrial applications, this machine features a two-chuck design that significantly enhances processing efficiency, allowing simultaneous loading and cutting operations. The inclusion of a Swiss-made Raytools laser cutting head 110 ensures superior beam quality, high precision cuts, and reliable operation, even during extended use cycles.

High Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration 0
A core innovation of our system is its short-tail cutting capability, which minimizes material waste. By achieving remarkably short leftover lengths (as low as 50-60mm in some advanced systems)26, it dramatically improves material utilization rates and reduces production costs per part. This advantage is particularly valuable when processing expensive metals or long production runs.

High Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration 1 High Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration 2 High Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration 3

Key Features & Advantages

  • Exceptional Precision: Delivers high-quality cuts with positioning accuracy of ±0.05mm and repeatability of ±0.03mm28.

  • High-Speed Operation: Designed for rapid acceleration (up to 2g) and fast cutting speeds, boosting overall throughput.

  • Short-Tail Cutting: Advanced chuck design and intelligent control enable processing with very short leftover material (tail ends), maximizing tube utilization and reducing waste.

  • Robust Construction: Incorporates high-quality components like HIWIN rail guideways, LEADER/YYC rack and pinion systems, and servos from Yaskawa or Inovance for durability and reliability.

  • Versatile Material Handling: Capable of cutting round, square, rectangular tubes, and profiles like angle iron, channel iron, and H-beams48.

  • Raytools Cutting Head: Renowned for optimal airflow, precise focus control, and robust design, contributing to excellent cut quality, especially on thin to medium thickness materialsHigh Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration 4

    Technical Specifications Table

    Component / Parameter Specification / Brand
    Laser Cutting Head boci/Raytools
    Laser Source Options IPG, Raycus, Max (1500W-6000W)
    Positioning Accuracy ±0.05mm/m2
    Repeat Positioning Accuracy ±0.03mm/m2
    Max. Acceleration 2g
    Standard Cutting Length 6000mm (8000mm optional)
    Tube Diameter Range Φ20mm - Φ300mm8
    Short Tail Length < 60mm (Typical)
    Chuck System Two-Chuck Design
    Servo Motors Yaskawa, Inovance
    Rail Guideways HIWIN
    Rack and Pinion LEADER, YYC
    Reducer Brand MOTOVARIO
    Control System Advanced CNC (e.g., PA)
    Warranty 2 Years
Packaging & Shipping

Each machine is securely packed in wooden crates with all accessories and documentation included. Shipping costs are calculated based on destination and weight, with tracking provided for all shipments.

High Precision Tube Laser Cutting Machine 0.03mm/m 2g Acceleration 5

Frequently Asked Questions (FAQ)

Q: What is the primary advantage of the short-tail cutting feature?
A: The short-tail cutting capability drastically rejects material waste by minimizing the unusable leftover piece at the end of a tube. This leads to higher material yield, lower production costs, and improved overall efficiency.

Q: What materials can this tube laser cutter process?
A: It efficiently cuts carbon steel, stainless steel, aluminum, brass, copper, and other metal alloys48.

Q: Where is this tube cutting machine manufactured?
A: Our machines are manufactured with stringent quality control standards. Key components like the Raytools cutting head are sourced from Switzerland1, while assembly and integration occur in our facilities, often incorporating global technologies10.

Q: What is the price for 1-2 units?
A: The price for 1-2 sets is typically around $23,500.00 per set, though final pricing may vary depending on configuration, laser power, and optional accessories.

Q: What industries is this machine suited for?
A: It's ideal for hand railing, bicycle frames, automotive components, window frames, metal furniture, electronics manufacturing, and aerospace parts.

Applications

This versatile machine is perfect for producing parts for handrails, bicycles, windows, metal fabrication, electronics, automotive components, and aerospace applications.
