Oem Programmable Laser Pipe Cutting Machine With HIWIN Guiderail

Product Details

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 10-30Sets/M

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Oem Laser Pipe Cutting Machine, HIWIN Guiderail Pipe Cutting Machine, Programmable Laser Pipe Cutting Machine


Cutting Speed:	0~100m/min	Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, DXP
Cutting Thickness:	0~20mm	Cooling Mode:	WATER COOLING
Control Software:	FSCUT5000B	Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools	Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN	Control System Brand:	FSCUT
Weight (KG):	2100 KG	Optical Lens Brand:	Wavelength
Warranty:	3 Years	Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC	Configuration:	5-axis
Chuck Rated Speed:	120r/min	Pipe Length:	Tailored

Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, DXP
Cutting Thickness:	0~20mm
Cooling Mode:	WATER COOLING
Control Software:	FSCUT5000B
Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools
Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN
Control System Brand:	FSCUT
Weight (KG):	2100 KG
Optical Lens Brand:	Wavelength
Warranty:	3 Years
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Configuration:	5-axis
Chuck Rated Speed:	120r/min
Pipe Length:	Tailored

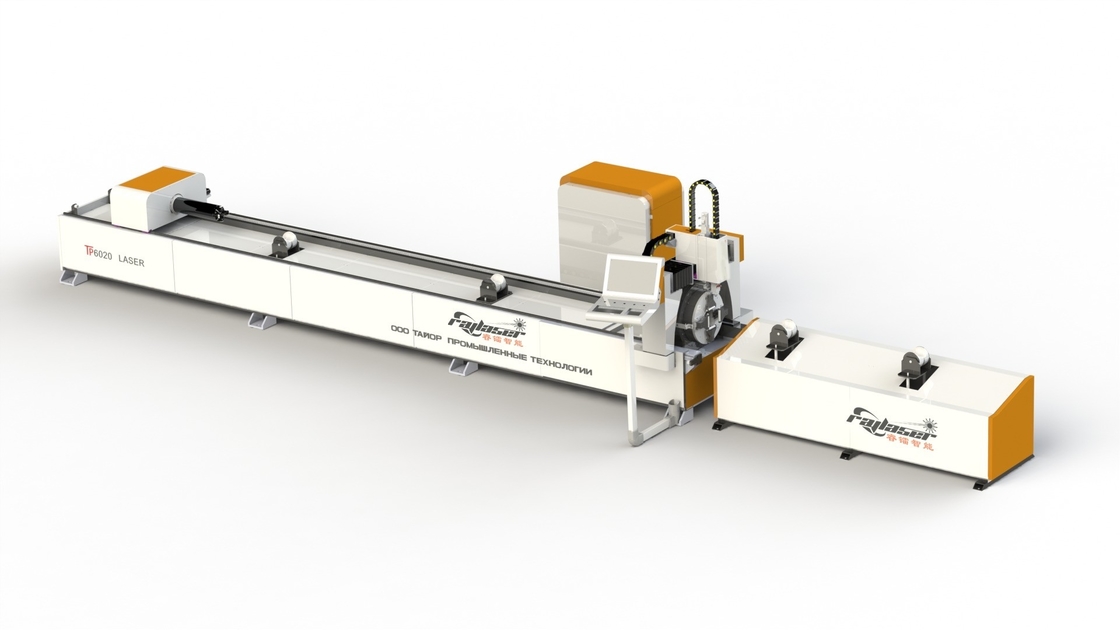

Oem Programmable Laser Pipe Cutting Machine With HIWIN Guiderail

Product Description

Overviews:

Power	2000~6000W
Rotating Speed of Chucks	100r/Min
No-Load Speed	100m/Min
Acceleration	1G
X/Y-Axis Positioning Accuracy	±0.03mm
X/Y-Axis Repositioning Accuracy	±0.03mm
Tail Waste	No
Cutting Capacity	Round ∅20~240mm
	Square ¨2020~¨240240
	Rectangular Diagonal≤260mm
Max. Weight of Tube	300KG
Overall Dimension	As Required

Key Features & Benefits:

✔ Fully Programmable CNC Control – Customize cutting patterns for complex shapes and angles
✔ HIWIN Linear Guide Rails – Ensures high stability, low friction, and long-term durability
✔ High-Speed Cutting – Up to 100m/min with 1G acceleration for maximum productivity
✔ Wide Material Compatibility – Cuts round, square, and rectangular pipes (Ø20–240mm)
✔ OEM Customization Available – Tailored solutions for automated loading/unloading, multi-head cutting, and more
✔ Energy-Efficient Operation – IPG/Raycus laser sources (1000W–6000W) reduce power consumption

Industries Served:

Automotive – Exhaust systems, roll cages, chassis components
Construction – Handrails, structural frames, scaffolding
Furniture & Decor – Metal furniture, lighting fixtures
Oil & Gas – Pipeline fittings, hydraulic components

Why Choose Our Machine?

✅ Superior Accuracy – ≤0.03mm tolerance for flawless cuts
✅ Low Maintenance – HIWIN rails and premium laser sources ensure longevity
✅ Smart Automation Ready – Compatible with robotic arms and conveyor systems
✅ Global Support – Serving Saudi Arabia, Southeast Asia, Europe & USA

Samples:

Oem Programmable Laser Pipe Cutting Machine With HIWIN Guiderail 1

FAQ:

1: What is the power range of this laser pipe cutting machine?

This machine offers a flexible power range from 2000W to 6000W, allowing for precise cutting of various metal tubes (round, square, and rectangular) with optimal speed and efficiency.

2: What is the maximum cutting capacity for pipes and tubes?

The machine supports:

Round pipes: Ø20–240mm
Square tubes: 20×20mm to 240×240mm
Rectangular tubes: Diagonal ≤260mm
Max. tube weight: 300KG

3: How accurate is the cutting precision?

With HIWIN guiderails and advanced CNC control, the machine ensures:

X/Y-axis positioning accuracy: ±0.03mm
X/Y-axis repositioning accuracy: ±0.03mm
Minimal tail waste for cost-effective production.

4: What are the speed and acceleration capabilities?

No-load speed: 100m/min
Chuck rotating speed: 100r/min
Acceleration: 1G
This ensures high-speed, smooth operation for industrial-grade productivity.

5: Can this machine be customized for specific production needs?

Yes! This is an OEM programmable laser pipe cutter, meaning we offer custom dimensions, power settings, and automation integration (e.g., loading/unloading systems) to match your factory’s requirements.

6: What materials can this machine cut?

It’s designed for carbon steel, stainless steel, aluminum, copper, and other metal pipes/tubes, making it ideal for automotive, construction, and HVAC industries.
