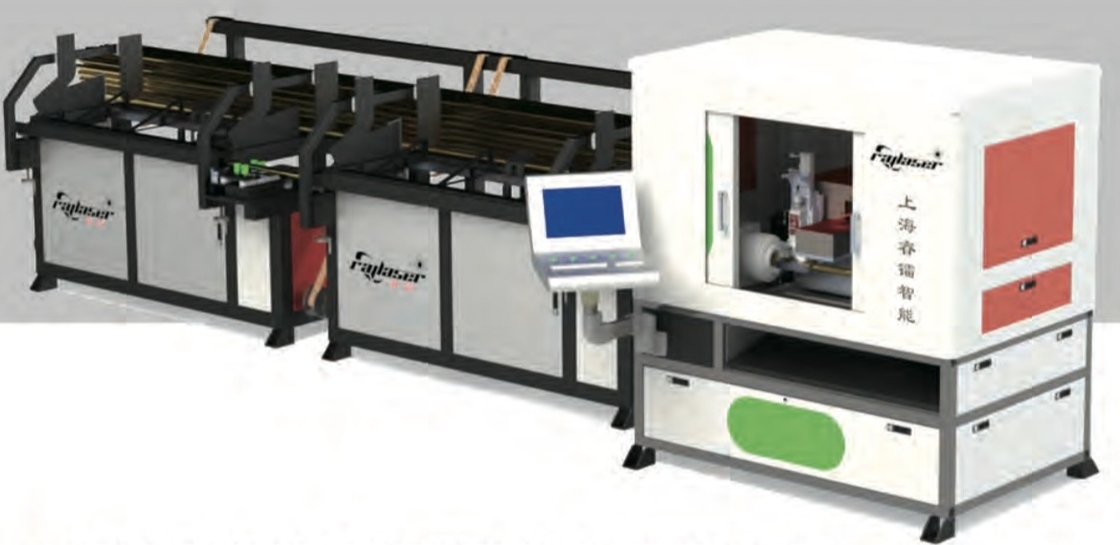

HIGH PRECISION MATERIAL PULLING AND PIPE CUTTING MACHINE
HIGH PRECISION MATERIAL PULLING AND PIPE CUTTING MACHINE
HIGH PRECISION MATERIAL PULLING AND PIPE CUTTING MACHINE

HIGH PRECISION MATERIAL PULLING AND PIPE CUTTING MACHINE

Product Details

Place of Origin: CE

Model Number: LP-80/100/-A/M

Payment & Shipping Terms

Delivery Time: 7-30days

Payment Terms: ,T/T

Get Best Price

Product Details

Product Description
Highlight:

Pipe Cutting Machine

,

MATERIAL PULLING AND PIPE CUTTING MACHINE

,

MATERIAL PULLING PIPE CUTTING MACHINE

Laser Power:
1000-3000W
Positioning Accuracy:
±0.03mm
Max Acceleration:
1G
Chuck Load:
≤120kg
Control System:
FS000DE-A/H
Single Max Cutting Length:
680mm
Max Tail Length:
≤20mm
Pipe Diameter:
φ5-80mm
Laser Power:
1000-3000W
Positioning Accuracy:
±0.03mm
Max Acceleration:
1G
Chuck Load:
≤120kg
Control System:
FS000DE-A/H
Single Max Cutting Length:
680mm
Max Tail Length:
≤20mm
Pipe Diameter:
φ5-80mm
HIGH PRECISION MATERIAL PULLING AND PIPE CUTTING MACHINE

Features:

  • Module design,single choice manual deeding,cost affordable of the entire machine.
  • Fully automatic feeding system,with high cost-effective and a speed of 30% faaster.
  • The material rack is designed with high rigidity,ensuring smooth and fast feeding,with a cycle time of about 10 seconds.
  • The four claw guide utilizes a guide rail mechenism for transmission, which enhance the straightness and stability of ther four claws and truly achieves self centering.

Applications:

The Fitness equipment, medical equipment, railing guards,bathroom hardware,furniture industry.



Suitable processing material:

Stainless steel and carbon steel material such as round, square,and rectangular pipes within 100mm.



Sample display

HIGH PRECISION MATERIAL PULLING AND PIPE CUTTING MACHINE 0


Welcome to visit our factory in Jiading DIstrict, Shanghai! You can enjoy the following:

1 : Free afternoon tea

Tags:

Pipe Fiber Laser Cutting Machine,

Tube Fiber Laser Cutting Machine,

Stainless Steel Tube Laser Cutter
