Application oriented experienced solution tube laser cutting Machine

Product Details

Certification: CE

Model Number: EP 6023 B

Document: 1500w50scuttingparameter.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 10-30Sets/M

Get Best Price
Highlight:

Fiber Laser Tube Cutting Machine

,

Beveling Tube Laser Cutting Machine

,

Fiber Laser Tube Beveling Machine

ACCELERATION:
2g
PRECISION:
0.03mm/m
SPEED:
140m/s
CUTTING AREA:
6000mm(L) X 230mm(DIA.)
ELECTRONIC CABINETS:
Separated
ACCELERATION:
2g
PRECISION:
0.03mm/m
SPEED:
140m/s
CUTTING AREA:
6000mm(L) X 230mm(DIA.)
ELECTRONIC CABINETS:
Separated
Application oriented experienced solution tube laser cutting Machine

Tube Laser Cutting Machine – Precision, Efficiency, and Versatility


1) Configuration and Specification

No Key parts Brands
1 System Bochu Cypcut
2 Laser source Raycus, Max, IPG
3 Laser cutting head Raytools Boci Ospri WSX
4 Chiller Hanli/S&A
5 Servo Motor (1300w+850w+400w) Yaskawa Inovance
6 Reducer MOTOVARIO
7 Rack and Pinion LEADER/YYC
8 Rail guideway HIWIN
9 Standard electrical parts Schneider/Shanghai Electric
10 Electrical proportional valve O2(<10bar)













Technical Specification

No. Key Performance Specification
2 X axis length 400mm
3 Y axes length 6010mm
4 Z axis length 300mm
5 Positioning accuracy ≤0.03mm
6 Repeat positioning accuracy ≤0.02mm
7 Max.accumulated speed 100m/min
8 Max.Acceleration 1.2G
9 Load Bearing Capacity 1500KG
10 Overall weight 2500Kg
11 Machine overall dimensions L12800mm*W1500mm*H1860mm
12 Power supply AC380V/50Hz/≤50KVA
13 Rating IP54

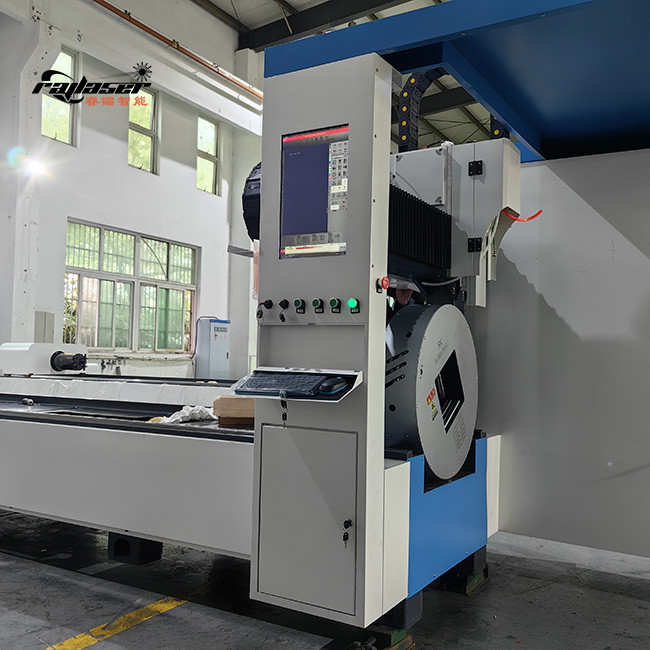

Application oriented experienced solution tube laser cutting Machine 0

Application oriented experienced solution tube laser cutting Machine 1


Product Advantages

Our Tube Laser Cutting Machine is engineered for high-speed, high-precision cutting of metal tubes and profiles. With a Raycus, Max, or IPG laser source and Raytools/Boci cutting head, it delivers superior beam quality and long-term stability. The Yaskawa/Inovance servo motors and HIWIN rail guideways ensure smooth motion control, achieving ≤0.03mm positioning accuracy and ≤0.02mm repeatability. The 1.2G acceleration and 100m/min max speed enhance productivity, while the 1500KG load capacity supports heavy-duty industrial applications.

The MOTOVARIO reducer and LEADER/YYC rack and pinion system provide durability, and the Schneider/Shanghai Electric components guarantee reliable electrical performance. With an IP54 rating, this machine operates efficiently even in harsh environments.

Applications

Ideal for industries requiring precise tube fabrication, our tube laser cutting machine is widely used in:

  • Automotive & Aerospace – Exhaust systems, frames, and structural components

  • Construction – Steel frameworks, handrails, and support beams

  • Furniture & Decor – Metal furniture, lighting fixtures, and artistic designs

  • Oil & Gas – Pipeline fittings and drilling equipment

FAQ

Q: What materials can this machine cut?
A: It processes carbon steel, stainless steel, aluminum, copper, and brass tubes with excellent edge quality.

Q: What is the maximum tube diameter supported?
A: The machine handles tubes up to 400mm in diameter, depending on configuration.

Q: Is training provided for operation?
A: Yes, we offer comprehensive training and technical support for seamless integration.

Q: What countries do you export to?
A: We supply Southeast Asia, Saudi Arabia, Europe, and the USA, ensuring global compliance.

Why Choose Us?

Our tube laser cutting machine combines German engineering, Japanese servo systems, and robust Chinese manufacturing, delivering cost-effective, high-performance solutions for global clients. Whether for industrial fabrication or custom metalwork, this machine maximizes efficiency, precision, and ROI.

Contact us today for a tailored solution to meet your production needs!
