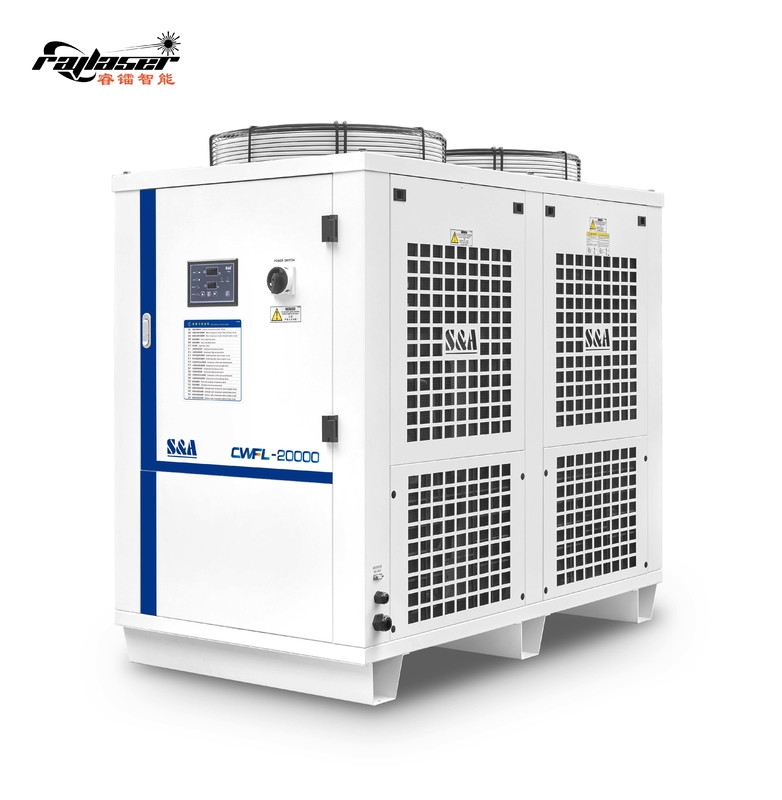

Laser Cutter Water Cooling System With Intelligent Digital Control Panel modbus communication industrial water chiller
Laser Cutter Water Cooling System With Intelligent Digital Control Panel modbus communication industrial water chiller
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V


Product Parameters
Model CWFL-20000ETS04TY CWFL-20000FTS04TY
Voltage AC 3P 380V AC 3P 380V
Frequency 50Hz 60Hz
Current 5.3~47.2A 6~43.7A
Max. power consumption 28.86kW 24.4kW
Heater power 1000W+7500W
Precision ±1℃
Reducer Capillary
Pump power 3.5kW 3kW
Tank capacity 170L
Inlet and outlet Rp1/2"+ Rp1-1/2"
Max. pump pressure 8.5bar 5.8bar
Rated flow 5L/min+＞150L/min
N.W. 315Kg 311Kg
G.W. 357Kg 353Kg
Dimension 158X80X132cm (L x W x H)
Package dimension 170X93X152cm (L x W x H)
