Home > Products > Single Table Fiber Laser Cutting Machine > Economical Fiber Laser Cutting Machine with 3050mm*1550mm Working Area
Highlight:

Economical Fiber Laser Cutting Machine

Warranty:
2 Years+N（Extend）
Service:
7x24Hs
Design Customized:
YES
Installation &Train:
YES
Acceleration:
1.5G
Electrical Cabinet:
Independent
Cutting Gas Paths:
3 Ways Auto Exchange
Machine Weight:
3200KG
Warranty:
2 Years+N（Extend）
Service:
7x24Hs
Design Customized:
YES
Installation &Train:
YES
Acceleration:
1.5G
Electrical Cabinet:
Independent
Cutting Gas Paths:
3 Ways Auto Exchange
Machine Weight:
3200KG

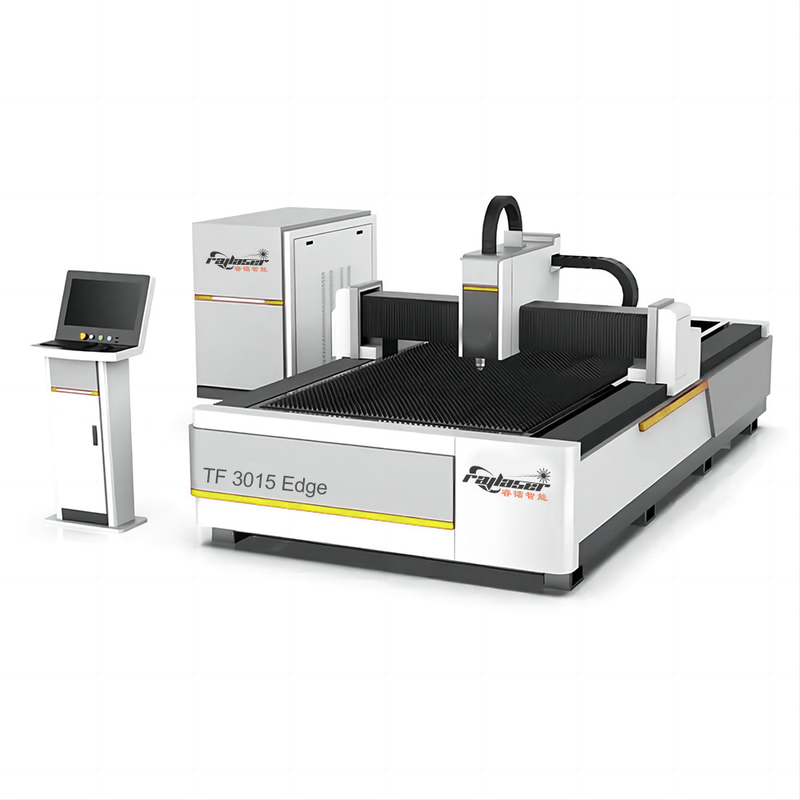

Economical Fiber Laser Cutting Machine with 3050mm*1550mm Working Area
Products Description

     Economical open cutting machine .Laser power from 1kW to 60kW

    The Open Laser series is a dual servo drive, cutting speed up to 80m/min
For sheet metal cutting, such as stainless steel sheet cutting, carbon steel sheet cutting, galvanized steel sheet cutting, aluminum sheet cutting etc.


Machine Parameters





Model
TF 3015 Edge
TF 4015 Edge
TF 6015 Edge
TF 4020 Edge
TF 6020 Edge
Cutting Area
3000*1500mm
4000*1500mm
6000*1500mm
4000*2000mm
6000*2000mm
Laser Source
MAX/Raycus
MAX/Raycus
MAX/Raycus
MAX/Raycus
MAX/Raycus
Cutting Head
Boci/Raytools/
Precitec
Boci/Raytools/Precitec
Boci/Raytools/Precitec
Boci/Raytools/Precitec
Boci/Raytools/Precitec
Chiller
S&G/Hanli
S&G/Hanli
S&G/Hanli
S&G/Hanli
S&G/Hanli
Max Motion Speed
80m/min
ACC=1.2G
80m/min
ACC=1.2G
120m/min
ACC=1.5G
120m/min
ACC=1.5G
120m/min
ACC=1.5G
Position Accuracy
±0.03mm
±0.03mm
±0.03mm
±0.03mm
±0.03mm
Reposition Accuracy
±0.02mm
±0.02mm
±0.02mm
±0.02mm
±0.02mm
Power Supply
380V 50/60Hz
30A
380V 50/60Hz 35A
380V 50/60Hz 40A
380V 50/60Hz 50A
380V 50/60Hz 60A
Max Loading
≤3.5T
≤4T
≤5.5T
≤4.5T
≤6T
Economical Fiber Laser Cutting Machine with 3050mm*1550mm Working Area 0
Economical Fiber Laser Cutting Machine with 3050mm*1550mm Working Area 1
International presence
We develop individual solutions and see ourselves as your partner over the entire product life cycle.
Economical Fiber Laser Cutting Machine with 3050mm*1550mm Working Area 2
Shanghai Raylaser Intelligent Technology Co., Ltd.
Shanghai Raylaser is quickly becoming customer's trustworthy that specializes in developing and manufacturing state-of-the-art Fiber laser CNC machines. Our machines utilize cutting-edge fiber lasers to deliver precision and speed in CNC Laser operations. with the exceptional beam quality and high power, offer incredible flexibility and make for an extremely versatile tool for cutting, Shanghai Raylaser Fiber laser CNC machines are designed for fibre laser applications over 17 years.
We are proud to bringing the manufacturing of fiber laser machines to the world. Our Fiber Laser machines are fully customizable to the specific needs of our customers. Our goal is to build affordable machines that are designed and built in Shanghai for the global market.
Our commitment to building high-quality machines, our customers can rest assured that they are investing in a top-notch product that will deliver exceptional results. At Raylaser we believe our commitment sets us apart from the competition, and we are earning more and more customer's trustworthy with our productive powers to empower the customer's.

Our product line including: Laser Cutting, Laser Welding and the Consumable Original Quality parts.
FAQ
Trying to figure out which Fiber Laser machine is right for you? Contact our team to learn more

Q1 : Our workers can't operate the machine, how to get the trainning? A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days. Q2 : I don’t know which one is suitable for me ? A2: Please tell me the following info: 1) Your materials 2) Max size of your material 3) Max cut thickness 4) Popular cut thickness Q3 : It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do? A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service. Q4 : Do you have the document for customs clearance? A4: Yes,we have Original. At first we will show you and after shipment we will give you Packing list/Commercial Invoice/Sales contract for customs clearance. Q5 : I don’t know how to use after I receive Or I have problem during use,how to do? A5: 1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update. 2) If have any problem in use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems solved.We can also provide Door service if you need.
