Product Details
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 7-30days
Payment Terms: T/T
Supply Ability: 10-30Sets/M
Cutting Speed: |
0~100m/min |
Graphic Format Supported: |
AI, PLT, DXF, BMP, Dst, DXP |
Cutting Thickness: |
0~20mm |
CNC Or Not: |
Yes |
Cooling Mode: |
WATER COOLING |
Control Software: |
FSCUT5000B |
Laser Source Brand: |
MAX Raycus |
Laser Head Brand: |
Raytools |
Servo Motor Brand: |
Yaskawa |
Guiderail Brand: |
HIWIN |
Control System Brand: |
FSCUT |
Weight (KG): |
5800 KG |
Key Selling Points: |
High Productivity Low Maintenance |
Optical Lens Brand: |
Wavelength |
Warranty: |
3 Years |
Warranty Of Core Components: |
3 Years |
Core Components: |
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC |
Configuration: |
5-axis |
Products Handled: |
Tube |
Feature: |
Programmable |
Performance: |
High Performance |
Chuck Rated Speed: |
120r/min |
Cutting Speed: |
0~100m/min |
Graphic Format Supported: |
AI, PLT, DXF, BMP, Dst, DXP |
Cutting Thickness: |
0~20mm |
CNC Or Not: |
Yes |
Cooling Mode: |
WATER COOLING |
Control Software: |
FSCUT5000B |
Laser Source Brand: |
MAX Raycus |
Laser Head Brand: |
Raytools |
Servo Motor Brand: |
Yaskawa |
Guiderail Brand: |
HIWIN |
Control System Brand: |
FSCUT |
Weight (KG): |
5800 KG |
Key Selling Points: |
High Productivity Low Maintenance |
Optical Lens Brand: |
Wavelength |
Warranty: |
3 Years |
Warranty Of Core Components: |
3 Years |
Core Components: |
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC |
Configuration: |
5-axis |
Products Handled: |
Tube |
Feature: |
Programmable |
Performance: |
High Performance |
Chuck Rated Speed: |
120r/min |
Overviews:
Power | 2000~6000W |
Rotating Speed of Chucks | 100r/Min |
No-Load Speed | 100m/Min |
Acceleration | 1G |
X/Y-Axis Positioning Accuracy | ±0.03mm |
X/Y-Axis Repositioning Accuracy | ±0.03mm |
Cutting Capacity | Round ∅20~240mm |
Square ¨20*20~¨240*240 | |
Rectangular Diagonal≤260mm | |
Max. Weight of Tube | 300KG |
The Whole welded frame, abrasive blasting No Deformation.
Top Brand of motion system to guarantee the whole life of precision.
Auto focus cutting head for your ease of use, more efficiency at high quality.
Selected Power souces, Professional and Best solution for the cutting productivity, quality and long life.
The Most advanced and ease of use system to give you no waste material.
The Larger Industrial Touch HMI Screen are Friendly and most enjoyable.
The International Standard Electric Cabinet and Most liked electrical parts for your durable use.
Samples

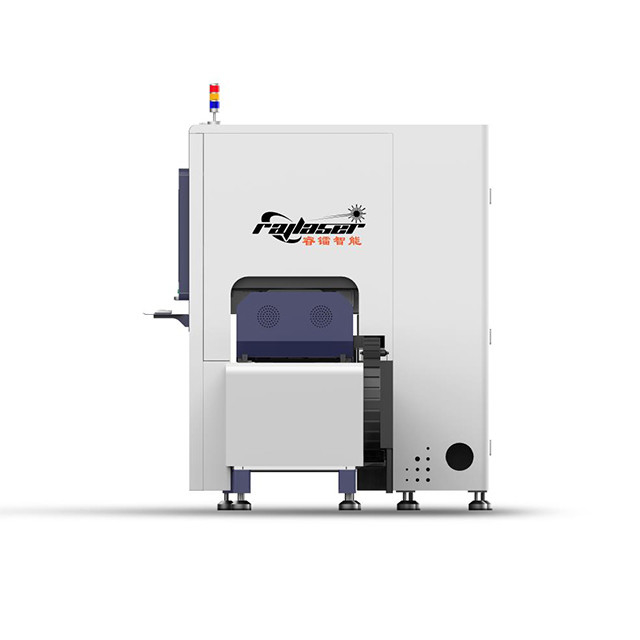

Our Fast Tube Laser Cutting Machine delivers industrial-grade performance with blazing cutting speeds up to 100m/min and ±0.03mm ultra-precise positioning accuracy, making it the ideal solution for high-volume metal fabrication across Southeast Asia and European markets.
Key Features & Advantages:
✔ Lightning-Fast Cutting Performance
100m/min no-load speed with 1G acceleration dramatically reduces production time
100r/min chuck rotation ensures smooth, consistent processing
✔ Unmatched Precision Cutting
±0.03mm positioning accuracy for flawless cuts every time
Advanced motion control system eliminates material waste
✔ Heavy-Duty Versatility
Processes round tubes (∅20-240mm), square (20×20-240×240mm), and rectangular profiles (≤260mm diagonal)
Handles massive 300KG tube weights with stability
✔ Powerful 2KW-6KW Laser Options
Cuts through stainless steel, carbon steel, and aluminum with ease
Adjustable power for optimal energy efficiency
✔ Smart Manufacturing Ready
Seamless integration with automated production lines
User-friendly CNC interface for quick operation
This Fast Tube Laser Cutting Machine is engineered for manufacturers who demand both speed and precision in their metal fabrication processes. With its robust construction and high-performance components, it delivers maximum uptime and productivity in demanding industrial environments across automotive, construction, and machinery sectors.
Why Global Manufacturers Choose Our Machine:
30% faster than conventional tube cutters
Precision-engineered for zero-defect production
Low maintenance design for continuous operation
Energy efficient operation reduces running costs
Upgrade your production line with the fastest, most precise tube cutting solution available today. Contact us for customized configuration options to meet your specific manufacturing needs.
FAQ
Q1: I knew nothing about this machine, what kind of machine I should choose?
It’s easy for you to tell us what’s your application, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but have no idea how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we will show you the professional guidance via video instruction.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will offer free parts during machine warranty period.
When out of warranty time we also supply after-sales service at lower cost.
Q4: Before sending us an inquiry, It’s necessary to provide the following information
1)The length and the diameter of the tube.
2) Your materials.
MS,SS,Aluminum Copper...
3) The main and max. thickness you want to cut?
Because different cutting thickness need different laser power source.
