Home > products > Sheet Metal Laser Cutting Machine > Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness
Highlight:

30mm Sheet Metal Laser Cutting Machine

,

100m/min Laser Cutting Machine

,

100m/min Sheet Metal Laser Cutter

Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0~30mm
CNC Or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYPCUT
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
3500 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Warranty:
3 Years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Mode Of Operation:
Continuous Wave
Configuration:
Gantry Type
Products Handled:
Sheet Metal
Feature:
Programmable Servo Motor
Performance:
High Performance
Speed:
Quick Fast
Precision:
Accuracy
Maintenance:
Low Cost
Port:
Shanghai, China
Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0~30mm
CNC Or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYPCUT
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
3500 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Warranty:
3 Years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Mode Of Operation:
Continuous Wave
Configuration:
Gantry Type
Products Handled:
Sheet Metal
Feature:
Programmable Servo Motor
Performance:
High Performance
Speed:
Quick Fast
Precision:
Accuracy
Maintenance:
Low Cost
Port:
Shanghai, China
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness
100m/min Sheet Metal Laser Cutting Machine With 0-30mm Cutting Thickness
Dominate your metal fabrication projects in Saudi Arabia, Qatar, UAE, and across the Middle East with the TF3015Edge Fiber Laser Cutting Machine from Shanghai Raylaser. Engineered for industrial laser excellence and backed by 17 years of specialized application expertise, this machine delivers unmatched precision, durability, and productivity for demanding workshops.

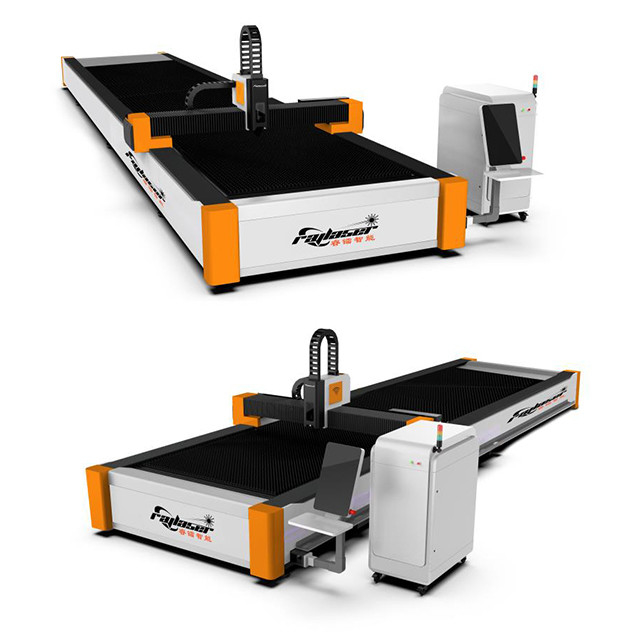

Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 0
Key Features
  • The whole welded structural frame by annealing and abrasive blasting, no deformation
  • Top brand for the mechanical moving system guarantee precision for the whole life of machine
  • The selected laser source for your professional demands, 24 hours continuous working machine
  • The ease of use software and auto focus cutting head for beginner and professional
  • 17 years of experience for laser cutting application from Shanghai, you deserve our specialist and advantages
  • Quick response to your further demand and any concern
  • Our main philosophy is focus on the customer's advantage of production
Technical Specifications
Model TF3015Edge
Cutting area 3000mm × 1500mm (Cutting Area accepted customized)
Fiber laser power 1000w/1500w/2000w/3000w/4000w/6000w/8000w/12000w/20000w
Fiber laser generator brand Raycus / Max / IPG
Laser wavelength 1,070-1,080mm
Interface USB, RJ45
Moving speed 60m/min
Max Cutting speed 120m/min
Position accuracy ±0.03mm
Repeatability accuracy ±0.02mm
Power supply requirement 3 phase 380v 50HZ / 60HZ (customized)
Max acceleration 1.0G
Table load bearing 1500KG
Compatible software CorelDraw / AutoCAD / Photoshop / AI
Brand of motor and drivers Japan Fuji; Japan Yaskawa; Taiwan Delta
Support graphic format LXD / DXF / PLT / AI / Gerber / DWG
Transmit system Dual Rack & Pinion type
Control system and software CypCut FSCUT
Cutting head Raytools / Ospri / Precitec
Reducer Japan Shimpo / France Motovario
Liner guider system Taiwan Hiwin / Italy PEK
Gear rack Taiwan YYC / Germany HERION
Electrical components France Schneider
Water chiller S&A / Hanli
Optional Exchanging Table; Protective Cover
Processing material Metal
Gross weight 3500KG
Packing size 4550×2250×1550mm
Packing method 20GP
Cutting Parameters
Material Thickness (mm) Assist Air Speed (m/min) Power(W) Pressure (bar) Header Height (mm) Focus Height Nozzle Type
MS (Q235B) 1 N2/Air 58~62 6000 12~16 0.5 0 Single:2.0
2 N2/Air 31~36 6000 12~16 0.5 0~-0.5 Single:2.0
SS (SUS304) 1 N2/Air 59~65 6000 12~16 0.5 0 Single:1.5
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 1
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 2
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 3
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 4
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 5
Advanced Features
  • Top Brand of moving system to guarantee the whole life of precision
  • Auto focus cutting head for your ease of use, more efficiency at high quality
  • Selected Power sources, Professional and Best solution for the cutting productivity, quality and long life
  • The Most advanced and ease of use system to give you no waste material
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 6
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 7
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 8
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 9
Our Professional and knowledgeable Service will give you a good experience
Sample Work
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 10
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 11
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 12
Packaging & Shipping
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 13
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 14
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 15
Our Services
  • Professional pre-sale consulting service, offer the most advanced solution
  • High quality production with detailed process and high standard inspection
  • We offer training that is individually adapted to different user types
  • Offer consumable parts at low prices
  • Upgrade the system or more needed power to increase productivity at low cost
  • Our professional technical service team to provide technical guidance and support for the whole life of machine
Company Information
Welcome to Shanghai Raylaser Intelligent Technology Co., Ltd. We are your trusted partner for laser application equipment in various industries. With 17 years of experience deeply rooted in the Chinese laser industry, we have a global presence that extends to Russian-speaking regions, Brazil, Argentina and the rest world.
Our vision: Smart and efficient solutions for all. Whether you need individual machines, automated systems, or specific laser applications, we provide customized solutions tailored to your needs. Shanghai Raylaser sets the benchmark in laser innovations, ensuring reliable production processes for superior quality outcomes.
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 16
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 17
Fiber Laser Cutting Machine 1500x3000mm 100m/min 30mm Thickness 18
Frequently Asked Questions
Q1: I knew nothing about this machine, what kind of machine should I choose?
It's easy for you to tell us what's your application, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but have no idea how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we will show you the professional guidance via video instruction.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will offer free parts during machine warranty period. When out of warranty time we also supply after-sales service at lower cost.
Q4: Before sending us an inquiry, It's necessary to provide the following information
1) Working area needed.
2) Your materials: MS, SS, Aluminum, Copper...
3) The main and max. thickness you want to cut? Because different cutting thickness need different laser power source.
