Home > products > Tube Laser Cutting Machine > Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source

Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source

Product Details

Place of Origin: China

Brand Name: RayLaser

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Wooden

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 10-30Sets/M

Get Best Price
Highlight:

industry tube laser cutting equipment

,

industry tube fiber laser cutting equipment

,

6M tube laser cutting machine

Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, DXP
Cutting Thickness:
0~10mm
Cooling Mode:
WATER COOLING
Control Software:
FSCUT5000B
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
FSCUT
Weight (KG):
3100 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Configuration:
5-axis
Products Handled:
Tube
Speed:
Quickly Fast
Precision:
More Accuracy
Maintenance:
Low Cost
Chuck Type:
Precise And Reliable
Chuck Rated Speed:
120r/min
Pipe Length:
Tailored
Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, DXP
Cutting Thickness:
0~10mm
Cooling Mode:
WATER COOLING
Control Software:
FSCUT5000B
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
FSCUT
Weight (KG):
3100 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Configuration:
5-axis
Products Handled:
Tube
Speed:
Quickly Fast
Precision:
More Accuracy
Maintenance:
Low Cost
Chuck Type:
Precise And Reliable
Chuck Rated Speed:
120r/min
Pipe Length:
Tailored
Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source

 Raylaser Dual-Chuck Fiber Laser Tube Cutter: Precision for Pipes, Profiles & Structural Steel

       Unlock Industrial Efficiency with 3000W Power & 6m Capacity

Shanghai Raylaser’s Dual-Chuck Laser Tube Cutting System revolutionizes processing for metal fabricators across the USA,

Saudi Arabia, and beyond. Engineered for high-speed precision on round tubes, square pipes, channels, and H-beams up to

6 meters long, this 3000W fiber laser machine combines robust engineering with intelligent automation—ideal for construction,

oil/gas, and architectural industries.

Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source 0

Key Product Features

  1. Dual-Chuck Efficiency

    • Twin 220mm servo chucks enable continuous loading/unloading

    • 45% reduced idle time vs. single-chuck systems

    • Automatic clamping for Ø20–220mm pipes

  2. High-Power 3000W Fiber Laser

    • Cuts carbon steel (0.5–12mm), stainless (0.5–10mm), aluminum (0.5–8mm)

    • ±0.05mm/m precision with linear encoder feedback

    • Zero-touch piercing for flawless holes on structural steel

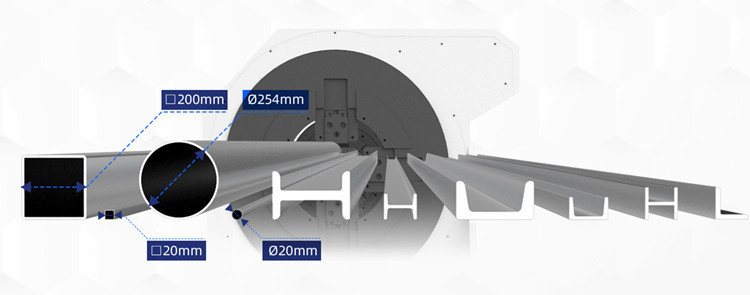

  3. Multi-Profile Mastery

    • Processes rounds, squares, rectangles, channels, H-beams, angles

    • Integrated rotary axis with 200 RPM torque

    • 3D bevel cutting (0–45°) for weld-ready joints

  4. Smart Production Ecosystem

    • 15" touchscreen HMI with RayOS controller

    • IoT-ready for remote job monitoring

    • Collision avoidance & material sag compensation

      5 Competitive Advantages

      1. Desert-Proof Durability
        IP54 sealed optics & chiller for Saudi sand/dust environments.

      2. OSHA/SASO Compliance
        Full safety enclosure with emergency stops and laser shielding.

      3. Plug-and-Play Installation
        Pre-calibrated modules (assembly <8 hours).

      4. Low-Cost Operation
        30% energy savings vs. plasma; minimal consumables.

      5. Intelligent Software
        Nest 6m pipes with <3% material waste (AutoNEST Pro).



Technical Specifications

Parameter Specification
Laser Power 3000W Fiber (Raycus/IPG)
Max Material Length 6000mm (236")
Chuck Size 220mm (8.7")
Cutting Diameter Ø20–220mm (Round), 20x20–220x220mm (Square)
Structural Capacity H-Beam: 150×150mm, Channel: 120×60mm
Positioning Accuracy ±0.05mm/m
Rotary Speed 200 RPM
Power Supply 380V/50Hz or 460V/60Hz (USA/Saudi)


FAQs: Laser Tube Cutting Solutions

Q: Can it cut asymmetrical profiles like channels?
A: Yes! Patented chuck adapters securely hold channels, angles, and H-beams without deformation.

Q: What about maintenance in remote locations?
A: We stock parts in Houston (USA) and Dammam (Saudi). Remote diagnostics via TeamViewer resolve 80% of issues.

Q: How fast is the cutting cycle for 100mm steel pipe?
A: At 3000W:

  • 6mm wall: 3.2m/min

  • 10mm wall: 1.1m/min

Q: Do you provide operator training?
A: Yes—free 3-day onsite training + lifetime video access.

Q: What shipping protection is offered?
A: Triple-layer: vibration-absorbing crates, climate-controlled containers, GPS tracking.



Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source 1Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source 2


The Most advanced and ease of use system to give you no waste material.

Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source 3



Samples

Industry Tube Laser Cutting Machine 6M With MAX Raycus Laser Source 4

Why Global Manufacturers Choose Raylaser

*"After installing Raylaser’s dual-chuck system in our Dubai facility, pipe processing time dropped by 60%. The 3000W laser handles carbon and stainless with zero burrs."*
– Production Manager, Gulf Piping Solutions

Global Support Network

  • USA: Technicians in4 states

  • Saudi Arabia: Arabic/English support in Riyadh/Jeddah

  • Parts Guarantee: 72-hour emergency dispatch
