Home > Products > Gantry Laser Cutting Machine > High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed
Highlight:

100m/min Fiber Laser Cutting Machine

,

4000w Fiber Laser Cutting Machine

,

Gantry Cnc Laser Cutter

Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0~30mm
CNC Or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYPCUT
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
3500 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Warranty:
3 Years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Fabricating, Bicycle
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC, Quality Brighter Laser, Experienced Assembling Technique
Mode Of Operation:
Continuous Wave
Configuration:
Gantry Type
Products Handled:
Sheet Metal
Feature:
Programmable Servo Motor
Performance:
High Performance
Speed:
Quick Fast
Precision:
Accuracy
Maintenance:
Low Cost
Expericed Assembling Technique:
Reliable Quality
Experienced After Sales Service:
Solution And Training Offered
Tailored Working Area:
Large Format Cutting Area
New Design:
Better Experience
Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0~30mm
CNC Or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYPCUT
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
3500 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Warranty:
3 Years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Fabricating, Bicycle
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC, Quality Brighter Laser, Experienced Assembling Technique
Mode Of Operation:
Continuous Wave
Configuration:
Gantry Type
Products Handled:
Sheet Metal
Feature:
Programmable Servo Motor
Performance:
High Performance
Speed:
Quick Fast
Precision:
Accuracy
Maintenance:
Low Cost
Expericed Assembling Technique:
Reliable Quality
Experienced After Sales Service:
Solution And Training Offered
Tailored Working Area:
Large Format Cutting Area
New Design:
Better Experience
High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed

High-Power Fiber Laser Cutting Machine

Discover Precision with Raylaser's TF3015Edge Gantry CNC Fiber Laser Cutting Machine
Unlock industrial-grade efficiency with Shanghai Raylaser's TF3015Edge – a high-power laser cutting machine engineered for unmatched accuracy, speed, and durability. Designed for demanding markets like Saudi Arabia and Southeast Asia, this gantry fiber laser cutting system combines cutting-edge optics (1,070–1,080nm wavelength), top-tier components, and 17 years of expertise to revolutionize metal fabrication.

High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 0

Key Features & Advantages

  1. Uncompromising Precision

    • Dual rack-and-pinion transmission, ±0.02mm repeatability, and 1.0G acceleration ensure flawless cuts.

    • Auto-focus cutting head (Raytools/Ospri) adapts to material thickness dynamically – perfect for beginners and experts.

  2. Industrial-Grade Power

    • Light high power fiber laser source (Raycus/IPG/Max) options: 1kW–20kW (expandable to 30kW high power fiber laser cutting machine on demand).

    • Cuts MS, SS, aluminum, copper up to 25mm thick at 120m/min max speed.

  3. Robust Construction

    • Annealed, whole-welded frame with abrasive blasting eliminates deformation.

    • Top brands: Japan Shimpo reducers, Taiwan Hiwin linear guides, France Schneider electronics.

  4. Smart Operation

    • CypCut FSCUT software supports CorelDraw/AutoCAD/DXF files.

    • 17" HMI touchscreen for intuitive control and minimal material waste.

  5. 24/7 Readiness

    • Active lubrication and S&A/Hanli chillers enable continuous heavy-duty operation.



Technical Highlights

Parameter Specification
Model TF3015Edge/pro
Cutting Area 3000 × 1500mm (Customizable)
Laser Power 1kW–20kW (30kW Optional)
Wavelength 1,070–1,080nm
Positioning Accuracy ±0.03mm
Max Speed 120m/min
Assist Gases N₂, O₂, Air
Material Compatibility MS, SS, Aluminum, Copper

Cutting Performance (SS 304 Example):

  • 10mm: 2.2–2.4m/min (6,000W, N₂)

  • 20mm: 0.5–0.6m/min (6,000W, N₂)

Why Choose Raylaser?

  • Laser Cutting High Power Expertise: 17+ years in laser applications.

  • Global Support: Training, software upgrades, and lifetime technical guidance.

  • Cost Efficiency: Low-cost consumables and after-sales service.

  • Custom Solutions: Exchange tables, protective covers, and power upgrades.


High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 1



High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 2 High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 3


Top Brand of moving system to guarantee the whole life of precision.

High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 4

Auto focus cutting head for your ease of use, more efficiency at high quality.




High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 5

FAQ

Q1: What machine suits my factory?

Share material type, thickness, and area – we tailor solutions (e.g., 30kw high power fiber laser cutting machine for heavy steel).

Q2: Is training provided?

Yes! Video manuals and live video support ensure seamless operation.

Q3: What if issues arise post-warranty?

Affordable parts and technical support guaranteed.

Q4: Which laser source is best?

IPG/Raycus for precision; Max for cost efficiency.

Q5: Can I cut 25mm steel?

Absolutely – O₂-assisted 25mm MS at 0.5m/min (4,200–5,600W).

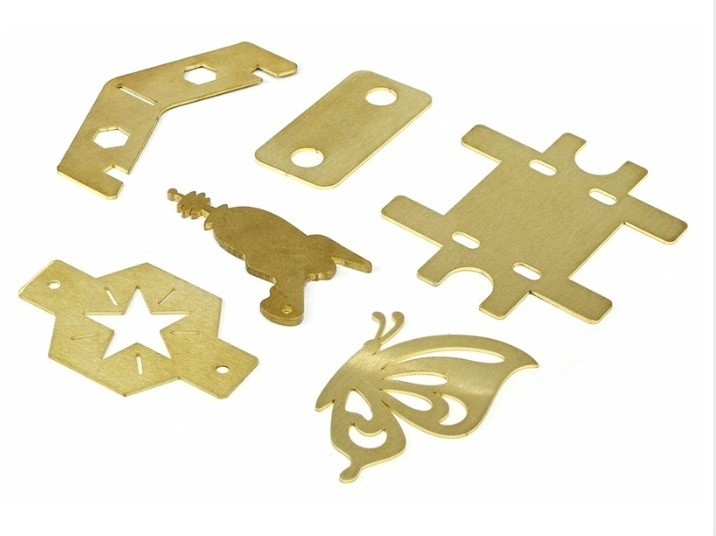

Samples

High-Power Fiber Laser Cutting Machine With 0~100m/min Cutting Speed 6



About Shanghai Raylaser

A pioneer in laser technology since 2005, we serve 50+ countries with smart, efficient solutions. Our ISO-certified machines meet European safety standards, backed by Saudi and SEA-ready voltage customization (380V/50–60Hz).


Packaging & Shipping:

  • Gross Weight: 3,500kg

  • Packed in 40GP container (12050 × 2250 × 1550mm).

  • Door-to-door logistics to Jeddah, Jakarta, Bangkok, and beyond.
