Home > products > Gantry Laser Cutting Machine > High-Power Laser Cutting for Industrial-Scale Sheet Fabrication
Highlight:

Gantry Laser Cutting Machine 100m/min

,

Metal Gantry Laser Cutter

,

Gantry Metal Laser Cutter

Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0~30mm
CNC Or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYPCUT
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
3500 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Warranty:
3 Years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Fabricating, Bicycle
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC, Quality Brighter Laser, Experienced Assembling Technique
Mode Of Operation:
Continuous Wave
Configuration:
Gantry Type
Products Handled:
Sheet Metal
Feature:
Programmable Servo Motor
Performance:
Top Performance
Speed:
Quick Fast
Precision:
Accuracy
Maintenance:
Low Cost
Expericed Assembling Technique:
Reliable Quality
Experienced After Sales Service:
Solution And Training Offered
Design:
No Deformation
Application:
LASER CUTTING
Applicable Material:
Metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm
Cutting Speed:
0~100m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0~30mm
CNC Or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYPCUT
Laser Source Brand:
MAX Raycus
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
3500 KG
Key Selling Points:
High Productivity Low Maintenance
Optical Lens Brand:
Wavelength
Warranty:
3 Years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Fabricating, Bicycle
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC, Quality Brighter Laser, Experienced Assembling Technique
Mode Of Operation:
Continuous Wave
Configuration:
Gantry Type
Products Handled:
Sheet Metal
Feature:
Programmable Servo Motor
Performance:
Top Performance
Speed:
Quick Fast
Precision:
Accuracy
Maintenance:
Low Cost
Expericed Assembling Technique:
Reliable Quality
Experienced After Sales Service:
Solution And Training Offered
Design:
No Deformation
High-Power Laser Cutting for Industrial-Scale Sheet Fabrication

Shanghai Raylaser Gantry Pro Series:

 High-Power Laser Cutting for Industrial-Scale Sheet Fabrication

Dominate Large-Format Metal Processing with 20kW-60kW Bevel Cutting Precision

Engineered for shipyards, mining equipment manufacturers, and structural steel fabricators across Southeast Asia and Saudi Arabia, the Raylaser Gantry Pro Series delivers unmatched power and scale. With high-power fiber lasers (20kW-60kW) and integrated bevel cutting (0–45°), this industrial gantry system processes sheets up to 6m x 20m, handling carbon steel (40mm+), stainless (30mm+), and aluminum (25mm+) at production speeds.


High-Power Laser Cutting for Industrial-Scale Sheet Fabrication 0




5 Revolutionary Features for Mega-Sheet Solutions

  1. Gantry-Scale Power

    • 60kW MAX Laser Source: Cuts 40mm carbon steel at 1.5m/min

    • Dual-Drive Servo System: 150m/min rapid motion (2G acceleration)

    • 20-Ton Capacity: Processes full plate stacks without decoiling

  2. Advanced Bevel Cutting

    • 3D Bevel Head: Automatically adjusts 0–45° for weld-ready edges

    • ±0.1° angle tolerance on 30mm steel

    • CAM software with auto-bevel nesting

  3. Desert & Tropical Resilience

    • IP65-sealed optics (Saudi sandstorms)

    • Humidity-controlled electrical cabinets (SEA monsoon climates)

    • S&G 40HP chiller for 45°C ambient operation

  4. Smart Factory Integration

    • IoT Production Monitoring: Real-time OEE tracking via RayCloud

    • Automated nozzle changers & height sensors

    • Compatible with FMS conveyor systems

  5. Zero-Downtime Design

    • Modular rail system for rapid maintenance

    • Laser-aligned gantry with 0.03mm/m thermal compensation

Technical Specifications (Gantry Pro Series)

Model Cutting Area Laser Power Max Thickness Bevel Capability Power
GP-6020 6m x 2m 20–30kW 35mm (CS) 0–45° 380V/100A
GP-8025 8m x 2.5m 30–40kW 40mm (CS) 0–45° 380V/150A
GP-1220 12m x 2m 40–50kW 45mm (CS) 0–45° 480V/200A
GP-2060 20m x 6m 50–60kW 50mm (CS) 0–45° 480V/400A (3-phase)

CS=Carbon Steel • Standard: Precitec HD bevel head • RayOS Pro controller




High-Power Laser Cutting for Industrial-Scale Sheet Fabrication 1

Why Choose Gantry Pro in SEA & Saudi Markets?

  • Monsoon/Dust Proof: IP65 components survive Jeddah sand and Bangkok humidity

  • Energy Savings: 2.5kW/hr power consumption at 40kW vs. 6kW/hr plasma

  • Waste Reduction: Nest 8x12m sheets with 94% material utilization

  • Compliance: CE, GCC, ASEAN safety certifications

  • Local Support: Technicians in Singapore, Riyadh, Kuala Lumpur




Cutting Area
Customize according to the workshop availability and required productivity load.



Laser Source
Max / Raycus / IPG / Boci / BWT



Laser Power
6000W~50KW Available



Max Acceleration
1.5G~4G optional



Cutting Speed
80m/min~180m/min



Positioning Accuracy
≤0.03mm



Repositioning Accuracy
≤0.03mm

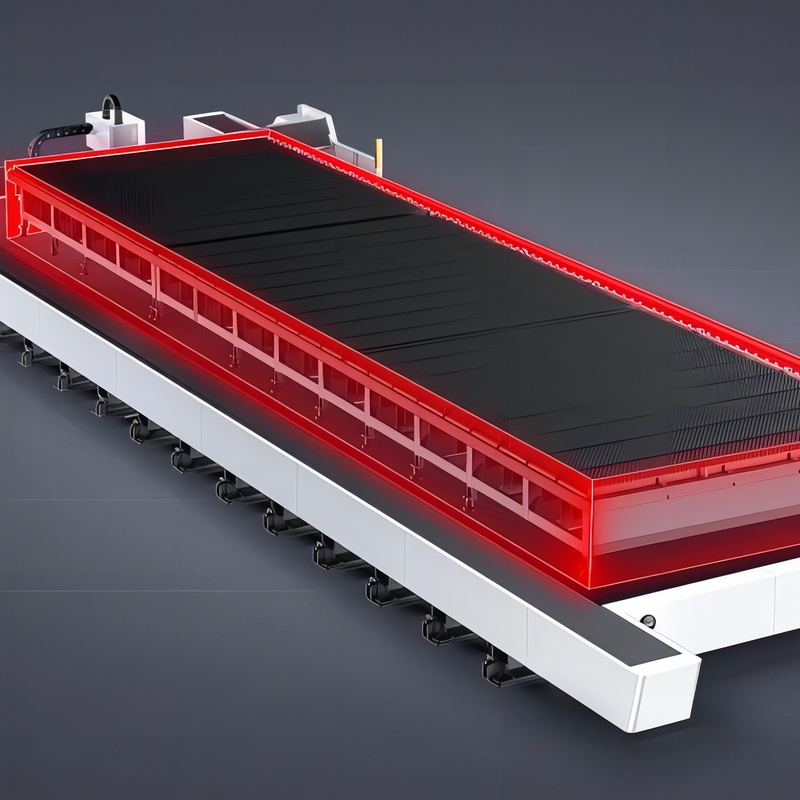

Customize the length of cutting table
According to the workshop space and the required workload, we can customize the most suitable cutting area.


High-Power Laser Cutting for Industrial-Scale Sheet Fabrication 2High-Power Laser Cutting for Industrial-Scale Sheet Fabrication 3High-Power Laser Cutting for Industrial-Scale Sheet Fabrication 4High-Power Laser Cutting for Industrial-Scale Sheet Fabrication 5

Critical FAQs

Q: Can it cut bevels on 30mm stainless for pressure vessels?
A: Yes! Our 50kW model achieves ±0.1° precision on 30mm SS at 0.8m/min.

Q: How to handle 20m sheets in limited spaces?
A: We offer segmented rail systems – install in 15m bays with extension kits.

Q: What cooling is needed for 60kW lasers in Saudi Arabia?
A: Integrated 40HP chillers maintain 22°C coolant in 50°C workshops.

Q: Is operator training included?
A: Free 5-day onsite training + multilingual manuals (Arabic/Malay/Thai).

Q: How does bevel cutting improve productivity?
A: Eliminate secondary milling:

  • Traditional: 45-min milling per joint

  • Gantry Pro: Integrated bevels in 1 pass

Industry Applications

*"Our Raylaser GP-2060 (60kW) in Batam shipyard cuts 40mm beveled hull plates in 8 minutes – 70% faster than plasma. ROI achieved in 11 months."*
– Production Director, PT Maritime Solutions Indonesia
