Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Enclosed Laser Cutting Machine 8000W, Enclosed Laser Cutting Machine 30000W, Cypcut Control Enclosed Laser Cutter


Cutting Area:	1500mm*3000mm	Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cutting Thickness:	0~30mm
Cooling Mode:	WATER COOLING	Control Software:	CYPCUT
Laser Source Brand:	MAX Raycus	Laser Head Brand:	Raytools
Servo Motor Brand:	Yaskawa	Guiderail Brand:	HIWIN
Control System Brand:	Cypcut	Weight (KG):	3500 KG
Key Selling Points:	High Productivity Low Maintenance	Optical Lens Brand:	Wavelength
Warranty:	3 Years	Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC	Configuration:	Gantry Type
Products Handled:	Sheet Metal	Feature:	Programmable Servo Motor

Cutting Area:	1500mm*3000mm
Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	0~30mm
Cooling Mode:	WATER COOLING
Control Software:	CYPCUT
Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools
Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN
Control System Brand:	Cypcut
Weight (KG):	3500 KG
Key Selling Points:	High Productivity Low Maintenance
Optical Lens Brand:	Wavelength
Warranty:	3 Years
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Configuration:	Gantry Type
Products Handled:	Sheet Metal
Feature:	Programmable Servo Motor

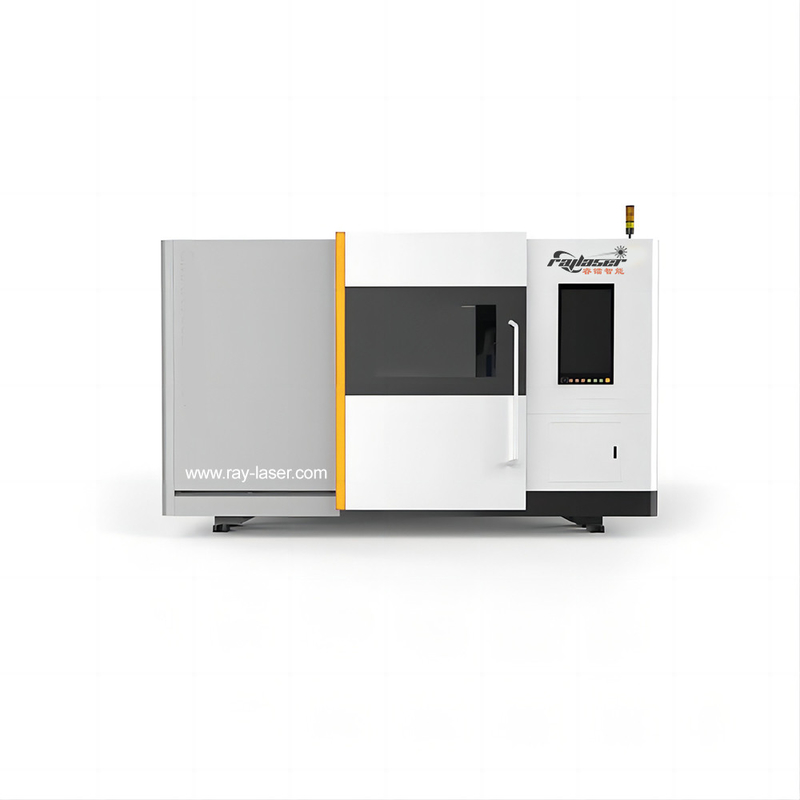

Cypcut Conclosed Laser Cutting Machine 8000W 12000W 20000W 30000W

Cypcut Control System 8000W 12000W 20000W 30000W Enclosed Fiber Laser Cutting Machine

Products Description

SPECIFICATIONS
Cutting Area	3000mm X 1500mm	4000mm X 2000mm	6000mm X 1500mm	6000mm X 2000mm
Positioning Accuracy	≤0.03mm	≤0.03mm	≤0.03mm	≤0.03mm
Repositioning Acc.	≤0.02mm	≤0.02mm	≤0.02mm	≤0.02mm
Max. Linkage Speed	90m/min	90m/min	100m/min	100m/min
Laser Power	1000W / 1500W / 2000W / 3000W / 6000W / 12000W / 15000W / 20000W / 30000W
Laser Source	Max / Raycus / IPG / Boci / BWT
Max Acceleration	1.2G	1.2G	1.5G	1.5G
Power Supply	AC380V/50Hz 60Hz	AC380V/50Hz 60Hz	AC380V/50Hz 60Hz	AC380V/50Hz 60Hz

FAQ:

What cutting area options are available?
Our Cypcut laser cutters offer four standard sizes: 3000×1500mm, 4000×2000mm, 6000×1500mm, and 6000×2000mm, accommodating both small precision parts and large industrial components with ≤0.03mm positioning accuracy.
How precise is the machine's cutting performance?
Featuring exceptional ≤0.02mm repositioning accuracy and ≤0.03mm positioning accuracy, our machines maintain consistent precision even during high-speed operation (90-100m/min) and 1.2G-1.5G acceleration.
What power options and laser sources do you offer?
Available in 1000W-30000W configurations with multiple laser source options (MAX/Raycus/IPG/Boci/BWT), allowing customization for materials ranging from thin sheets to 60mm thick plates.
What electrical requirements does the machine have?
All models operate on standard industrial AC380V power (50Hz/60Hz compatible), with power consumption varying by laser wattage. Our 30000W system includes voltage stabilization technology.
How does the acceleration rate affect cutting quality?
The 1.5G acceleration in our larger models (6000×2000mm) enables sharper cornering and reduces processing time by 15-20% compared to standard 1.2G systems, while maintaining cutting precision.
Can the machine handle both thin and thick materials?
Yes, our variable power systems (adjustable 1000W-30000W) combined with Cypcut's adaptive control technology optimize cutting parameters automatically for materials from 0.5mm to 60mm thickness.
