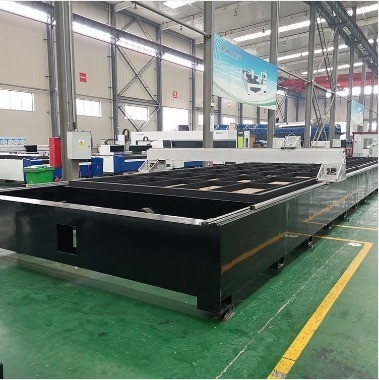

TF3015Edge Fiber Laser Cutting Machine 1500x3000mm for Metal Fabrication

Product Details

Place of Origin: China

Brand Name: RayLaser

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Wooden

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: Sets/M

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Middle Steel Laser Cutting Machine, Steel Laser Cutting Machine 1500mm, BMP Format Laser Cutting Machine


Application:	LASER CUTTING	Applicable Material:	Metal
Condition:	New	Laser Type:	Fiber Laser
Cutting Area:	1500mm*3000mm	Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cutting Thickness:	0~30mm
CNC Or Not:	Yes	Cooling Mode:	WATER COOLING
Control Software:	CYPCUT	Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools	Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN	Control System Brand:	Cypcut
Weight (KG):	3500 KG	Key Selling Points:	High Productivity Low Maintenance
Optical Lens Brand:	Wavelength	Warranty:	3 Years
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	3 Years
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC	Mode Of Operation:	Continuous Wave
Configuration:	Gantry Type	Products Handled:	Sheet Metal
Feature:	Programmable Servo Motor	Performance:	High Performance
Speed:	Quick Fast	Precision:	Accuracy
Maintenance:	Low Cost

Application:	LASER CUTTING
Applicable Material:	Metal
Condition:	New
Laser Type:	Fiber Laser
Cutting Area:	1500mm*3000mm
Cutting Speed:	0~100m/min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	0~30mm
CNC Or Not:	Yes
Cooling Mode:	WATER COOLING
Control Software:	CYPCUT
Laser Source Brand:	MAX Raycus
Laser Head Brand:	Raytools
Servo Motor Brand:	Yaskawa
Guiderail Brand:	HIWIN
Control System Brand:	Cypcut
Weight (KG):	3500 KG
Key Selling Points:	High Productivity Low Maintenance
Optical Lens Brand:	Wavelength
Warranty:	3 Years
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	3 Years
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
Mode Of Operation:	Continuous Wave
Configuration:	Gantry Type
Products Handled:	Sheet Metal
Feature:	Programmable Servo Motor
Performance:	High Performance
Speed:	Quick Fast
Precision:	Accuracy
Maintenance:	Low Cost

TF3015Edge Fiber Laser Cutting Machine 1500x3000mm for Metal Fabrication

BMP Format Middle Steel Laser Cutting Machine With 1500mm×3000mm Cutting Area

Key Specifications

Application	Laser Cutting
Applicable Material	Metal
Laser Type	Fiber Laser
Cutting Area	1500mm × 3000mm
Cutting Speed	0-100m/min
Cutting Thickness	0-30mm
Control Software	CYPCUT
Weight	3500 KG
Warranty	3 years

Precision Laser Cutting Solutions for Middle East Metal Fabricators: TF3015Edge Fiber Laser Cutter

Dominate your metal fabrication projects in Saudi Arabia, Qatar, UAE, and across the Middle East with the TF3015Edge Fiber Laser Cutting Machine from Shanghai Raylaser. Engineered for industrial laser excellence and backed by 17 years of specialized application expertise, this machine delivers unmatched precision, durability, and productivity for demanding workshops.

Why Choose the TF3015Edge for Your Middle East Operations?

Unshakeable Foundation & Precision: Whole welded structural frame guarantees absolute "No Deformation" with positioning accuracy (±0.03mm) and repeatability (±0.02mm)
Power & Reliability: High-power laser source (1000W to 20,000W) from leading brands for 24/7 continuous operation
Effortless Operation: Intuitive CypCut FSCUT software compatible with CorelDraw, AutoCAD, AI, DWG, DXF
Premium Components: International components (France Schneider electricals, Japan Shimpo reducers) ensuring longevity
Heavy-Duty Performance: Cuts MS, SS, Aluminum, Copper with table loads up to 1500KG and high speeds (60m/min moving, 120m/min max cutting)

Technical Specifications

Model	TF3015Edge
Cutting area	3000mm × 1500mm (customizable)
Fiber laser power	1000w-20000w (multiple options)
Fiber laser generator brand	Raycus / Max / IPG
Moving speed	60m/min
Max Cutting speed	120m/min
Position accuracy	±0.03mm
Repeatability accuracy	±0.02mm
Table load bearing	1500KG
Gross weight	3500KG
