AIR COOLING LASER WELDING MACHINE

Name: AIR COOLING LASER WELDING MACHINE
Brand: Shanghai Raylaser Intelligent Technology Co., Ltd.
SKU: RL2000 HW
Price: 3,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RayLaser

Certification: CE

Model Number: RL2000 HW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Wooden

Delivery Time: 7-14 days

Payment Terms: T/T

Supply Ability: Sets/M

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                3 in 1 Laser Welding Machine 1500W, Raytools Metal Laser Welding Machine, Steel 3 in 1 Laser Welding Machine


Warranty:	1 Year	Laser Power:	800W -3000w
Function:	Welding&Cutting&Cleaning（3 In1）	Cooling Method:	Water Cooling /Air Cooling
Welding Depth:	Max 5mm（stainless Steel Under 3KW)	Welding Width:	0-8mm
Weight:	27 KG-135KG	LOGO:	Raylaser Or Customized

Warranty:	1 Year
Laser Power:	800W -3000w
Function:	Welding&Cutting&Cleaning（3 In1）
Cooling Method:	Water Cooling /Air Cooling
Welding Depth:	Max 5mm（stainless Steel Under 3KW)
Welding Width:	0-8mm
Weight:	27 KG-135KG
LOGO:	Raylaser Or Customized

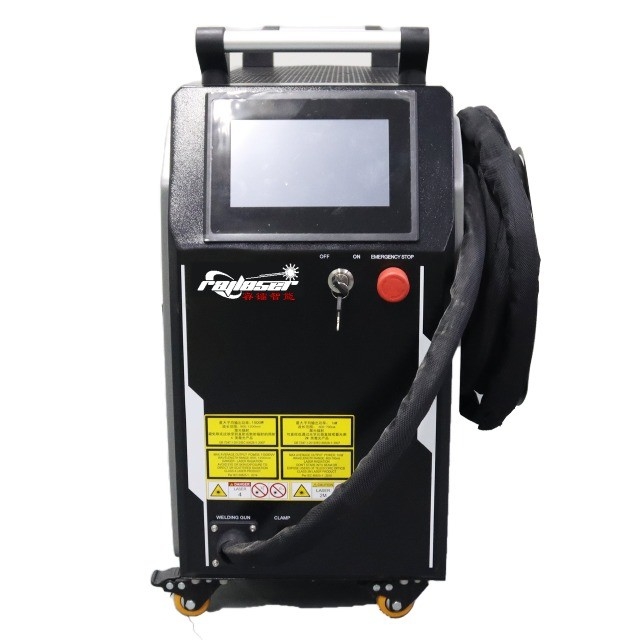

AIR COOLING LASER WELDING MACHINE

Products Description

Air-Cooled Handheld Laser Welding: Lightweight Power for On-Demand Precision
Revolutionize metal fabrication with next-gen air-cooled handheld laser welding machines. Engineered for unmatched portability and industrial-grade stability, these tools eliminate bulky water-cooling systems while delivering professional welding performance on stainless steel, aluminum, copper, and alloys.

AIR COOLING LASER WELDING MACHINE 0

Core Features & Advantages

✅ Ultra-Portable Design

Weight: Just 18-22KG (40% lighter than water-cooled models)
Ergonomic Handle: One-person operation with fatigue-reducing grip
Compact Frame: Fits in tight spaces and mobile workshops

✅ Advanced Air-Cooling Stability

Dual high-pressure turbine fans maintain <45°C core temperature
95% duty cycle for continuous 8-hour operation
Anti-dust filters protect optical components

✅ Professional-Grade Performance

Laser Power: 1500W-3000W (adjustable in 100W increments)
Welding Depth: 0.5-4.0mm (carbon steel/stainless)
Pulse Frequency: ≤100Hz
Beam Quality: ≤0.8mrad (superior focus)

✅ Smart Operation

4.3" touchscreen with preset modes (spot/stitch/seam welding)
Real-time temperature/power monitoring
Auto-protection against voltage fluctuations

Technical Specifications

Parameter	Specification
Model	Raylaser AIR-2000F
Cooling Method	Forced air circulation
Weight	20KG
Input Voltage	AC220V±10%
Max Power	2000W
Welding Speed	0-20mm/s (adjustable)
Spot Diameter	0.2-3.0mm
Protection Class	IP54 (dust/water resistant)
Dimensions	400x200x150mm

Key Applications

Field Repairs: Pipeline/oil rig maintenance
Auto Restoration: Body panel welding without disassembly
Jewelry Manufacturing: Precision micro-welding
Construction Sites: Structural steel joining

Faster and easier than MIG & TIG Welding.

Unbeatable Benefits FAST: Up to 4X faster thanTIG VERSATILE: Wide range of materials – up to 1/4 in. (6.35 mm) EASY: Optimized presets reduce learning curve CONSISTENT: High-quality, repeatable results FLEXIBLE: Simple and challenging applications PRODUCTIVE: Pre- and post-weld cleaning capability

Competitive Advantages

Zero Water Dependency
No chilling units or coolant maintenance – deploy instantly.
Military-Grade Durability
Aerospace aluminum housing withstands 1.5m drops.
Energy Efficiency
30% lower power consumption vs. water-cooled systems.
Plug-and-Weld Simplicity
Starts welding in <60 seconds after power-on.

FAQ: Addressing Critical Concerns

Q1: Can air-cooled welders handle thick materials?
A: Yes. Our 2000W model welds up to 4mm stainless steel continuously with patented temperature control.

Q2: How does air cooling impact weld quality?
A: Advanced heat dissipation maintains ±2% power stability – identical to water-cooled results.

Q3: Is portability sacrificed for power?
A: No. The AIR-2000F weighs only 20KG with 2000W output (industry-leading power-to-weight ratio).

Q4: What safety features are included?
A: Class 4 laser protection goggles, emergency stop button, and automatic shutdown on overheating.

Q5: Can beginners operate it effectively?
A: Absolutely. Preset programs for common materials require only 1-hour training.

Why Professionals Choose Raylaser

16 Years Thermal Management Expertise: Shanghai-engineered cooling algorithms
Global Certification: CE, FDA, RoHS compliant
On-Demand Support:
- 24/7 video troubleshooting
- Next-business-day spare parts dispatch
- Lifetime software upgrades

Limited-Time Offer:
Order before [Month] to receive:
① Free magnetic welding jig ($150 value)
② 3-year extended warranty

Experience Cordless Freedom
Request a live demo or material test report. Discover why 1,200+ workshops switched to air-cooled handheld laser welding in 2023.
